Real-time, predictive insights
directly from your manufacturing machines
Unleash the Power of Trapped Machine Data
The ArchFX Platform collects and contextualizes data from electronics manufacturing machines, providing a comprehensive view of factory operations and actionable changes within them.
Arch® Global KPIs Solution for Electronics Manufacturing

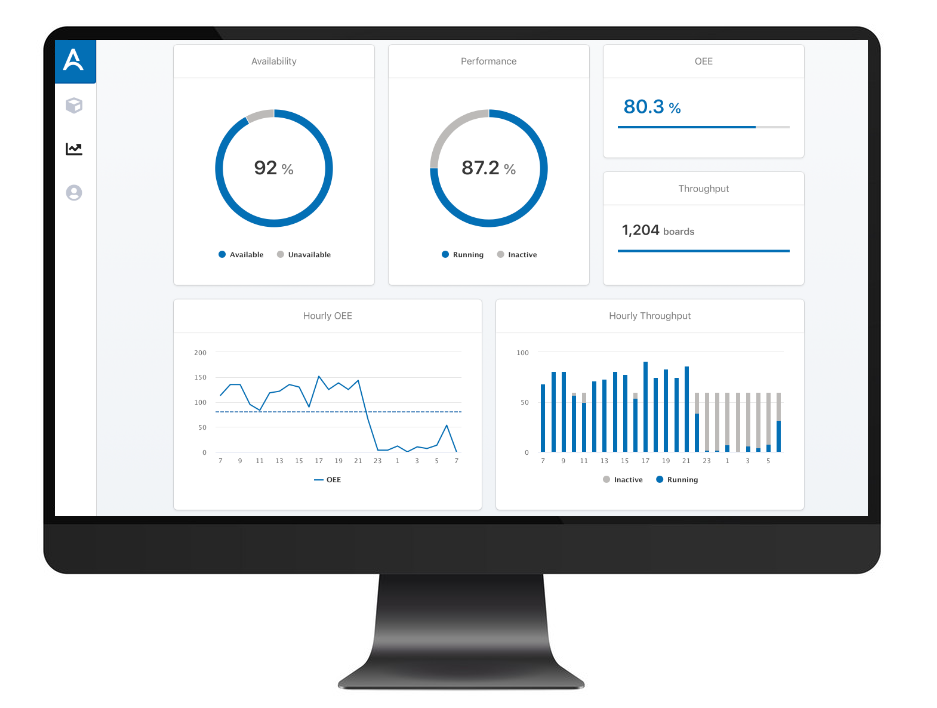

The Arch® Global KPIs Solution gives manufacturers an accurate, continuously up-to-date view of the performance of their global manufacturing operations. Employees at every level can now focus on the best opportunities for improving manufacturing operations performance and asset utilization.
A Solution to Improve Productivity and Manufacturing Operations
Automatic data from every machine that tells you 1) what your utilization is, 2) where the root
causes are, and 3) the non-obvious actions to drive meaningfully toward your utilization targets.
The Arch® Global KPIs Solution gives manufacturers an incredibly powerful 3-part offering:
- An accurate, continuously up-to-date view of the performance of global manufacturing operations,
- Important insights about where the utilization losses are,
- Actionable insights to recapture valuable losses.
This solution empowers employees at every level to focus on the best opportunities for improving manufacturing operations, performance, and asset utilization.
Empower Staff
Give asset managers, equipment engineers, and manufacturing operators at every location
and level the ability to identify opportunities and take initiative to improve utilization
Global, regional, site, area, line and machine views give your employees immediate visibility.
From here, they they can improve results and are empowered to make decisions in real time.
Maximize SMT Line Utilization
Protect and accelerate the ROI of your existing assets and new investments
As you harness the power of your data, expect to add 5-10% utilization, achieving over 5x ROI with a sub 6 months payback. Some some manufacturers can achieve as much as 20-40% gains based on advanced insights.
Machine Data
One of the most valuable assets available to any manufacturer
As technology frees up more data, it’s critical that your data quickly identifies root causes and drives decisive forward movement with actionable analytics.
We collaborate with the world’s leading SMT vendors, including ASM, Fuji, Koh Young, ViTrox and more to provide rich data and actionable insights for SMT manufacturers.
Advanced SMT Machine Insights
Insights to improve utilization and throughput with high quality benchmarks
via ML advanced analytics on complex SMT data sets
Session Analytics
- Intensive view of utilization over a specific work order to identify recipe imbalances vs operational losses and frame what you could have gotten back by restructuring your work.
Error Event Analysis
- Understand top stops like fiducial measurement errors and fix the right things at the right times.
Feeder Analyzer
- Sort through the extensive data of mispicks and identify the hotspots with positive ROI for preventative maintenance.
A Successful Partner
Production deployments in 15 countries over 5 continents and teams stationed in 5 countries
Arch Systems is the partner of choice for electronics manufacturers, working in 4 of the top 10 EMS companies. We have successful deployments, both 100% remote and in-person, in 15 countries over 5 continents.
For qualified SMT and electronics manufacturers, we provide low-cost, low-risk trials of our product. Let us walk with you from Industry 3.0 to 4.0 and build a data-driven operation together.

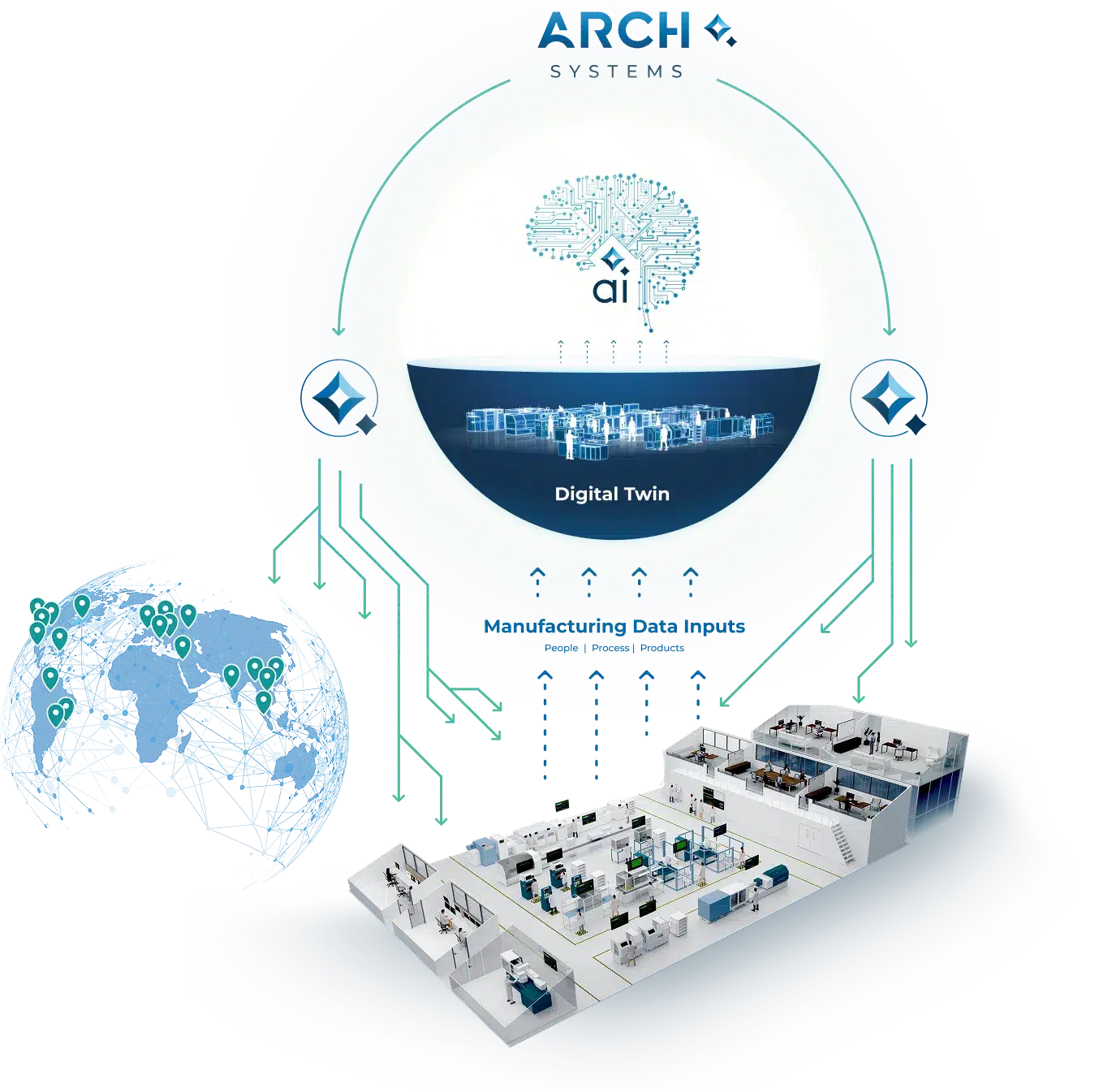

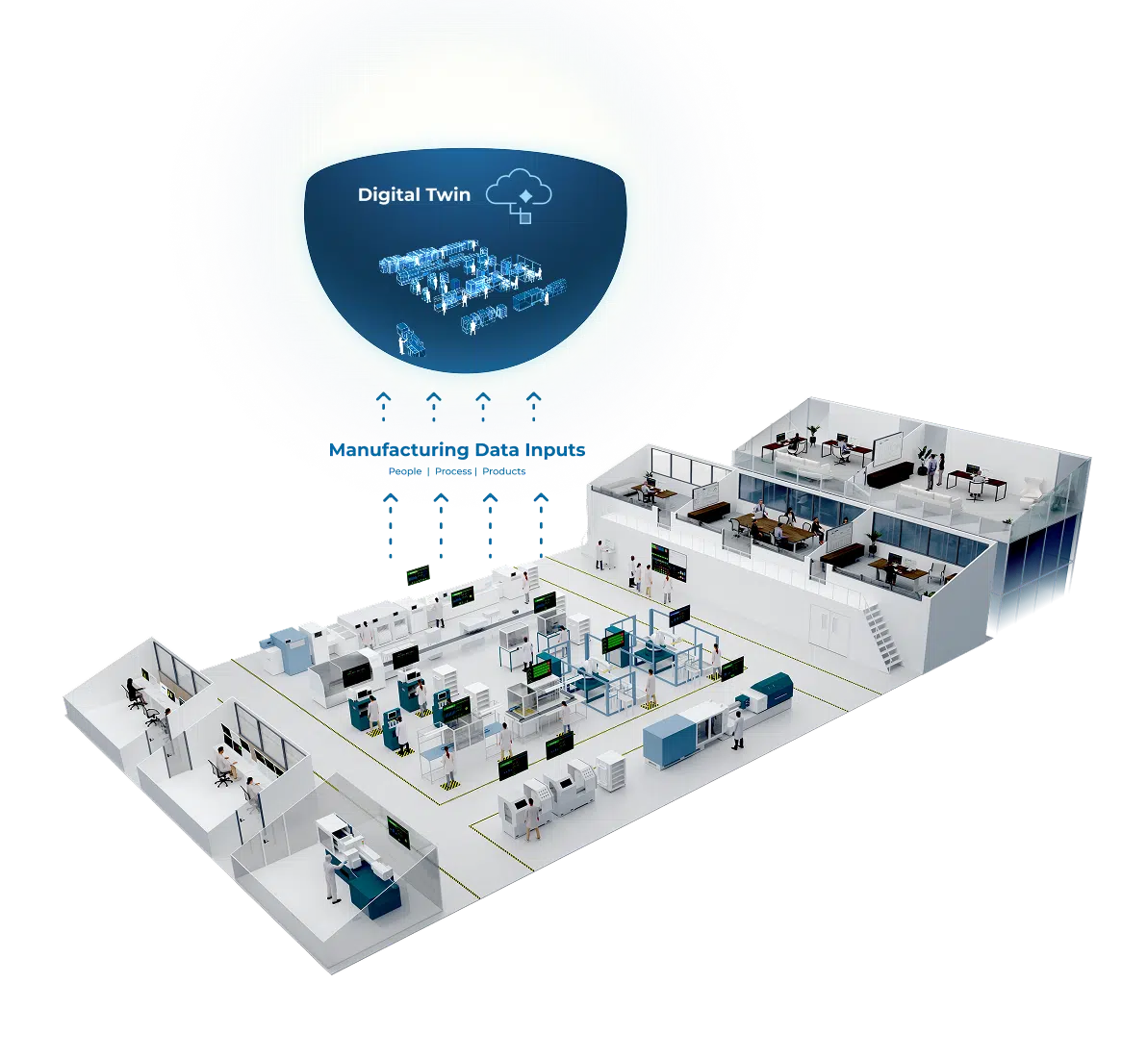

Industry 4.0 Machine Data Platform
Data from any machine, new or legacy, powering real-time and predictive analytics
Building upon a common software procedure Extract (E) Transform (T), Load (L), ArchFX deploys a 4-step approach to transforming your machine data into real business value:
- EXTRACT
- TRANSFORM
- LOAD
- ANALYZE
Want to learn how ArchFX can work for your manufacturing operations?
Customer Story
From Legacy Machines to Manufacturing Intelligence
How Flex uses ArchFX to connect and analyze all Surface Mount Technology (SMT) lines globally
VIDEO:
Watch as John Wrenn, Chief Technology Officer, Information Technology for Flex, discusses the initiative that won Flex a 2020 Manufacturing Leadership Council Award for Enterprise Integration Technology Leadership
“Arch is being deployed across many of
our digital factories to capture the relevant
analytics that help us drive production
efficiencies, process automation, and
predictive analytics. They can pull raw data
from new and existing machines to help
us generate actionable metrics. We are
very excited with our partnership; their
technology is very impressive.”
-GUS SHAHIN
CIO, Flex
RICH DATA FROM
ELECTRONICS MANUFACTURING MACHINES
Unlocking even more advanced insights from all your combined machine data
Solder Printing
Operators often report that 80% of all errors can be attributed back to solder issues. Data from these machines can unlock critical quality insights.
Inspection
Solder Paste Inspection (SPI), Automated Optical Inspection (AOI), and X-ray Inspection (AXI) machines generate data that unlocks valuable operational insights.
Assembly & Test
Productivity across the backend is critical. In-Circuit Testing (ICT) and Functional Tests (FT) produce rich data for quality and utilization analysis.
RICH SMT MACHINE DATA INSIGHTS
Unlocking trapped machine data, like that from your PnP machines, can lead to advanced analytics for your entire SMT line
The PnP machine is the workhorse of the SMT line, and there’s a lot this one machine can tell you about the other machines on the line.
Attrition rates from feeders, blocks, starves; these reports are a valuable tool for any SMT manufacturer looking to capture higher line utilization (LU) and increase ROI from machine assets.
Ready to learn more about what ArchFX can do for your SMT line?
ARE YOU READY TO SEE
THE VALUE THAT’S TRAPPED
ON YOUR SHOP FLOOR?
Find out how you can leverage your own data now.
